Overview

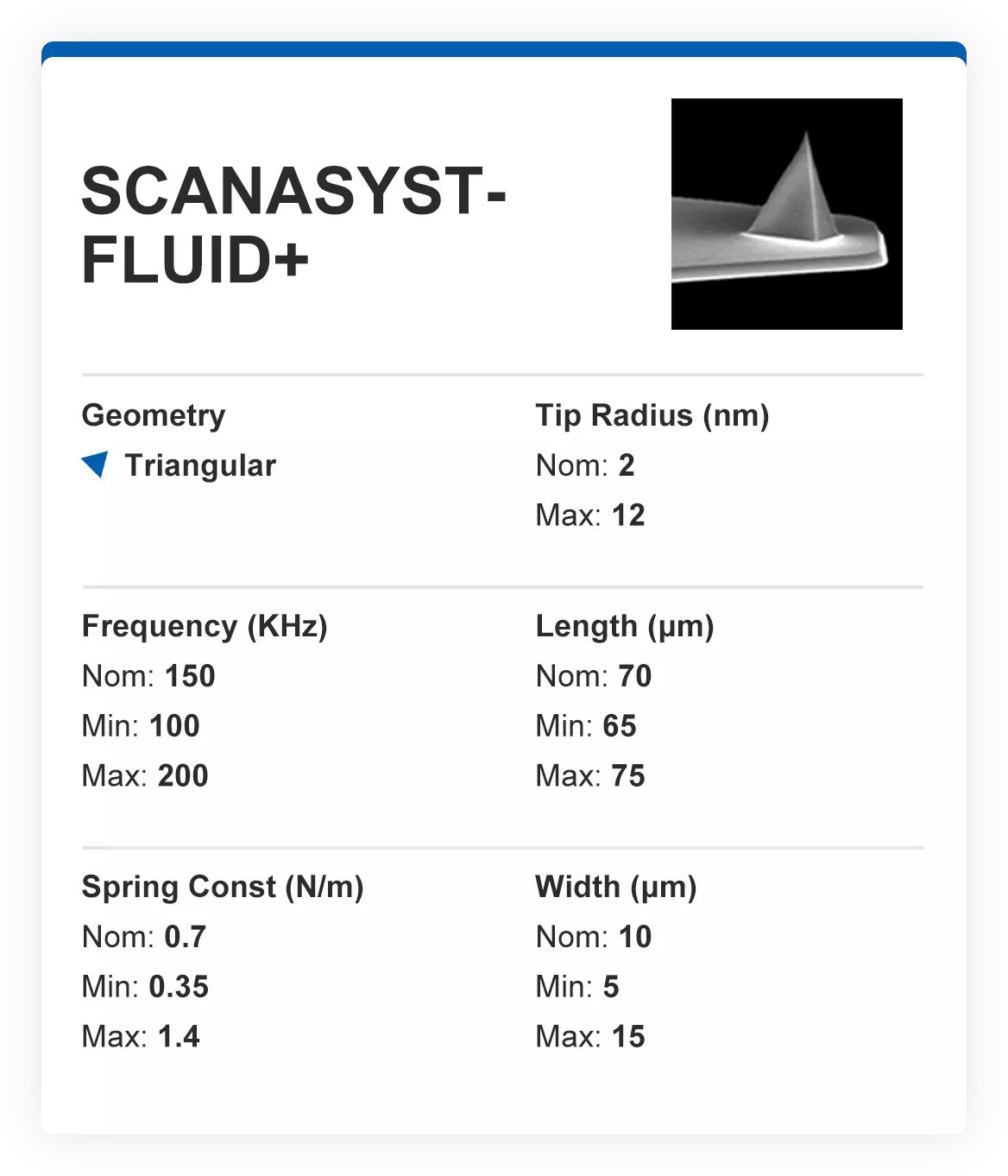

SCANASYST-FLUlD+ is one of our most popular probes for high resolution imaging of biomolecules and similar samplesin fluid!

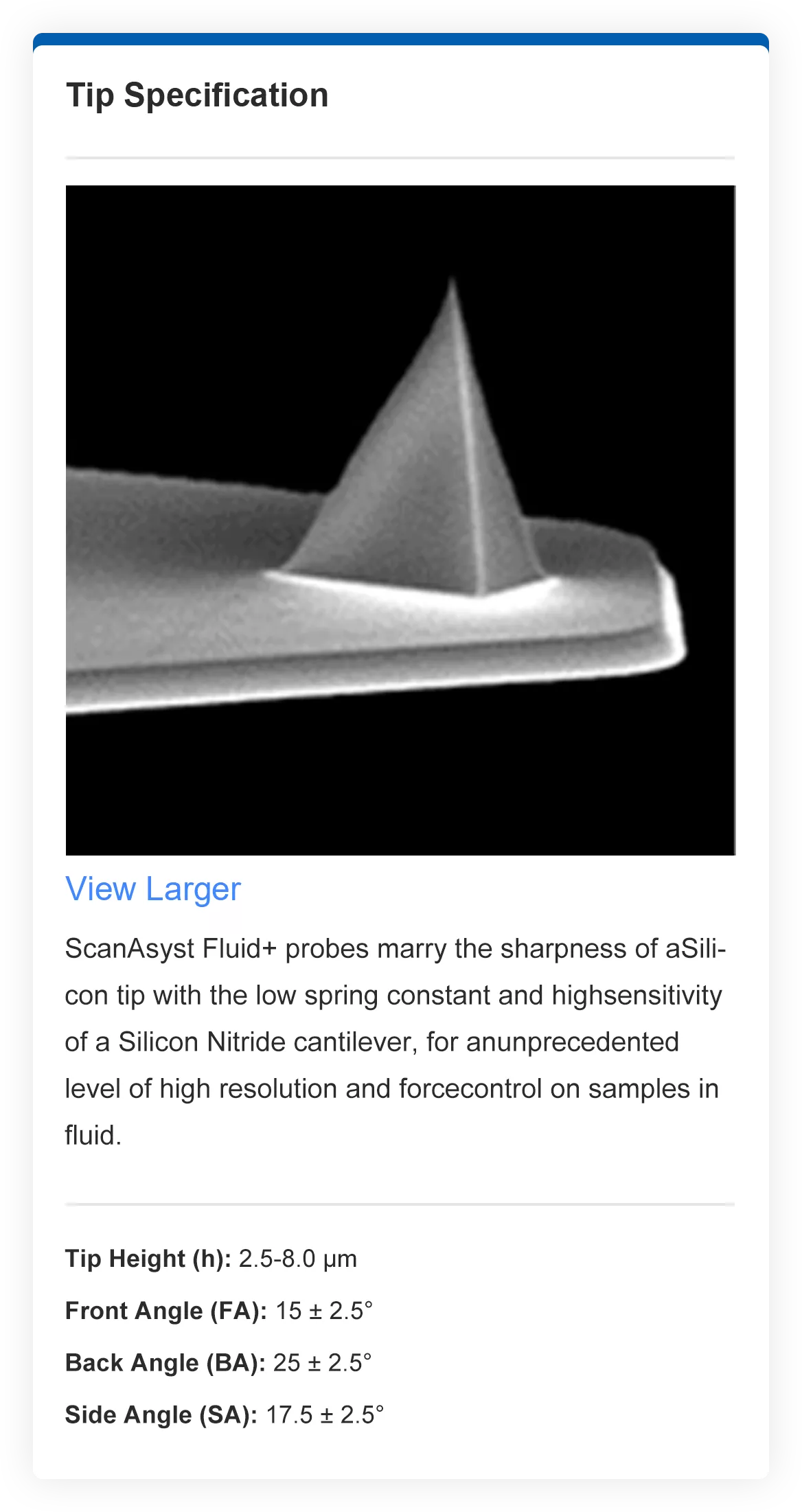

The SCANASYST-FLUlD+ probe features a single, Vshaped, Au reflex coated cantilever with a low spring constant Pairedwith a very sharp nominal 2nm radius tip it excels at high resolution imaging. Used in conjunction with Peak ForceTapping technology meaning no tuning in fluid, Bruker AFMs can also employ automatic scan optimization using thisprobe. Expert level imaging of biomolecules every time!

See the cantilever orientation diagram here. All ScanAsyst probes have <2 degrees of cantilever bend.
